PERFORMANCE
PRINCIPLES OF A VENTILATED RAINSCREEN SYSTEM
THREE RAINSCREEN PRINCIPLES:
• First Line of Defence
- Reduces the moisture load on cladding
- Minimise rainwater passage into the wall
• Second Line of Defence
- Intercept water
- flashed, drained, vented air cavity + water-resistant membrane
• Air Barrier System – Ventilation Effect
- Reduces the static air-pressure difference across the cladding, creating a “chimney effect.”

Only horizontal joints open

Vertical & horizontal joints open
THERMAL PROTECTION: THE STACK EFFECT
CLADDING
CAVITY
INSULATION
INNER WALL

SUMMER
• 80% heating flux reduction from sun radiation
• Promotes the thermal exchange of air
• Offers performance that is equivalent to a facade protected by shadows
Summertime heat transfer
CLADDING
CAVITY
INSULATION
INNER WALL

WINTER
• Allows for the ventilation of any moisture created by condensation and or precipitation.
• 3 - 36% energy savings*
Wintertime heat transfer
Wintertime heat transfer

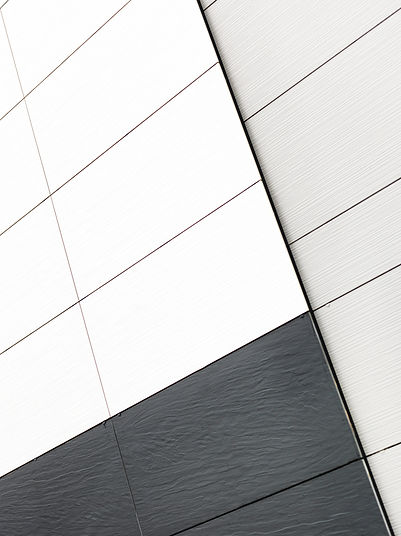

ADVANTAGES OF USING PORCELAIN PANELS
PHYSICAL PROPERTIES
• Compact
• No water absorption, impermeable: no efflorescences
• Flexi resistant
• Low thermal coefficient - refractory
• Resistant to freeze-thaw cycles
• Thermal shock resistant
• Crack resistant
• Scratching and abrasion resistant
CHEMICAL PROPERTIES
• Resistant to chemical corrosion (acid/alkaline)
• Resistant to stains
• Resistant to graffiti (anti-graffiti)
• Resistant to cleaners and pollution
GREEN MATERIAL
• Natural product - no volatile compounds
• Up to 100% recyclable
AESTHETICS
• Wide range of formats, colors, finishes, textures
PRACTICABILITY
• Easy replacement of panel & identical finish
• No maintenance
• Self cleaning with heavy rainfall

WEIGHT COMPARISON
HEAVY (15 lb/sqft)
• Concrete
• Natural stone
SEMI-HEAVY (6-15 lb/sqft)
• Stone
• Concrete
• Ceramic
• Brick
LIGHTWEIGHT (6 lb/sqft)
• Porcelain panel
• Plastic
• Wood
• Fibre-cement Board
• Glass
• Composites
• Laminates
